Features:
- 19” densely packed 1U patch panel enabling termination of up to 144 optical fibers with connectors and crossconnections
for fibre optic links - Installation in 19” racks with a minimum depth of 300 mm, e.g. STP-19M
- Extendable drawer design with roller guides
- Installation in 21” and/or 23” racks with the use of AD-19 adapters
Accessories:
- Front plate with holes for fibre optic adapters
- Dedicated splice trays
- Installation and maintenance instructions
- Installation kit
| Number of dedicated splice trays | 12 |
| Maximum number of fusion splices | 144 |
| Number of adapters on the front plate | 144 |
| Connector standard | LC |
| Dimensions: Width/Depth/Height [mm] | 483 x 44 x 262* |
| Mass [kg] | 4,4 |
| Mounting | front |
| Operation environment | from +5°C to +45°C, 85% Relative Humidity at +20°C |
| Housing material/colour | powder coated steel sheet / RAL 7035 |
* dimensions including shelf

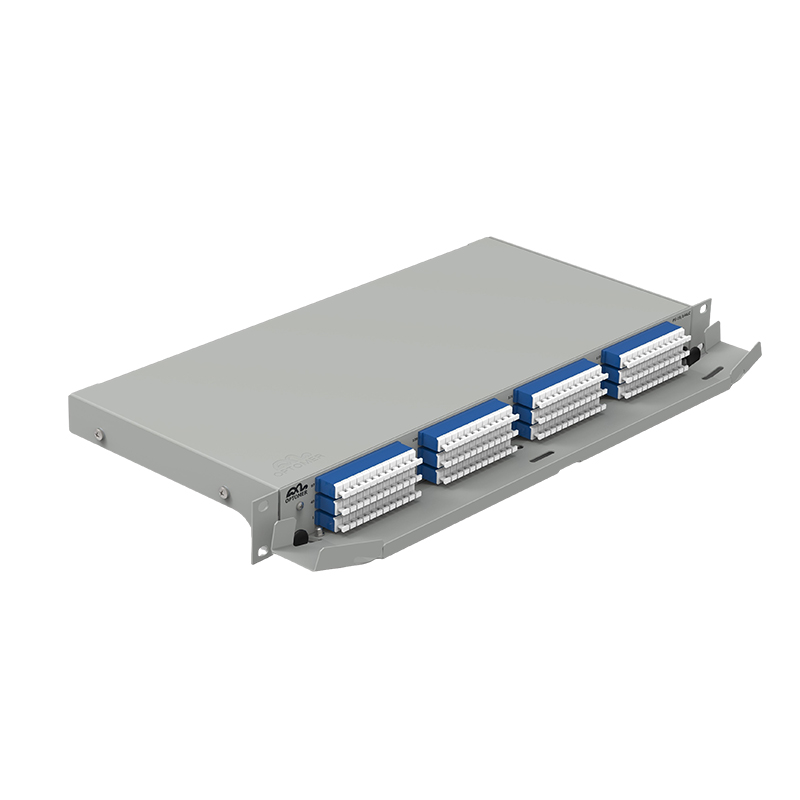

PS-19/144LC/1U Fibre Optic Patch Panel
Product's code
DESCRIPTION
The PS-19/144LC/1U Fibre Optic Patch Panel is a high-capacity, 1U solution featuring 144 LC connectors on the front plate. Designed for efficient fibre management, it supports a maximum of 144 fusion splices utilizing 12 dedicated splice trays. It is suitable for installation in 19” racks (requiring a minimum depth of 300 mm, e.g., STP-19M) and can be installed in 21” and/or 23” racks using AD-19 adapters.
TECHNOLOGY
FTTx
ZASTOSOWANIE WEWNĘTRZNE
DATA CENTER
