Features:
- Designed for solutions using MPO connectors (Multi-Fiber Push On Connector)
- Using MPO connectors can improve the throughput and reliability of connections made in a smaller space
- Provides maximum space savings in IT cabinets and reduces installation time
- MPO connectors are available in male (with pins) and female (without pins) versions. Both are mated using
an MPO adapter - 12-fibre MPO connectors are the most commonly used; 24-fiber connectors are also available
- The frame allows:
• Installation of up to two MPO adapters
• Installation of 12 SC Duplex adapters; 24 x SC connector plugs
• Storage of slack patchcord cables in a dedicated patchcord storage tray
• Installation in PSM-19/144/3U Modular patch panels. Increased capacity from 144 to 288 SC connectors
Accessories:
- 1 x MPS-DC-2MPO/12SC module frame
- 1 x patchcord storage tray
- 1 x rubber protective o-ring
Additional accessories:
- MPO-SC-12J-1 patchcord
- SC adapter
| Product Name | MPS-DC-2MPO/24SC Module |
| Dimensions [mm]: Width x Height x Depth | 35×128,5×205 |
| Maximum number of MPO connectors | 2 |
| Maximum number of SC connectors | 24 |
| Adapter standard on front panel | SC |
| Maximum length of a single slack fibre [m] | 1 |

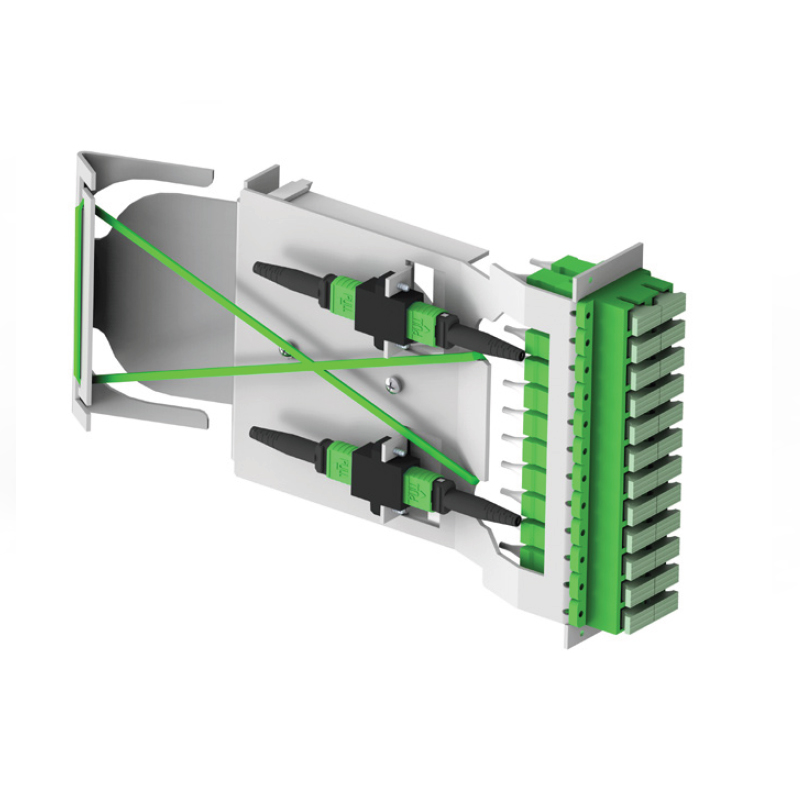

MPS-DC-2MPO/24SC Module
Product's code
DESCRIPTION
The MPS-DC-2MPO/24SC Module is engineered for high-density Data Center solutions using MPO (Multi-Fiber Push On Connector) technology. This module improves throughput and connection reliability within a reduced space, ensuring maximum space savings in IT cabinets and reducing installation time.
TECHNOLOGY
FTTx
ZASTOSOWANIE WEWNĘTRZNE
DATA CENTER
