R-01A
- Accepts 12 OFBLT-P-3.1-0.5-PP protective tubes for outdoor cable fibre distribution.
- Organises fibres into 12 fiber bundles routed in protective tubes directly to MPS-12, MPK-12 modules.
- Each protective tube accepts fibres from different outdoor cable loose tubes.
- Feeds the required fibre-count bundles to PS-19 patch panels and modules in PSU-300 cabinets.
- Enables several optical distribution modules to be fed with fibres from a single fibre optic cable.
- Can be mounted to the LRK Cable Fixing Plate.
| Mass (kg) | 0.15 |
| Number of cable entry ports | 1 for feeder cable |
| Feeder cable outer diameter range | 8mm – 15mm |
| Number of output ports | 12 for OFBLT-P-3.1-0,5-PP protective tubes |
| Dimensions (mm) width x depth x height | 44x34x128 |
| Mounting method | 2 M5 screws |

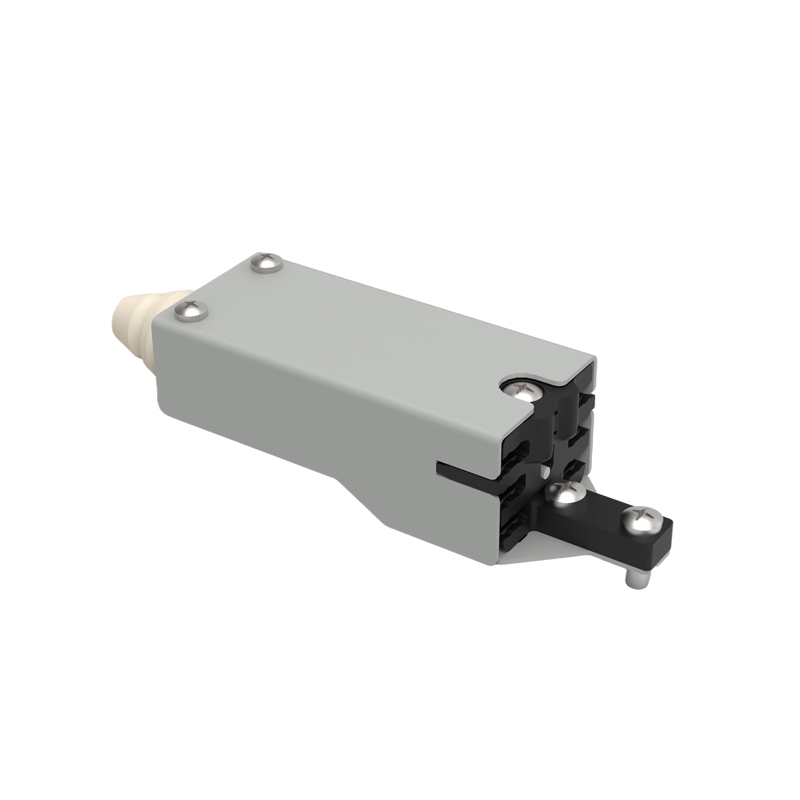

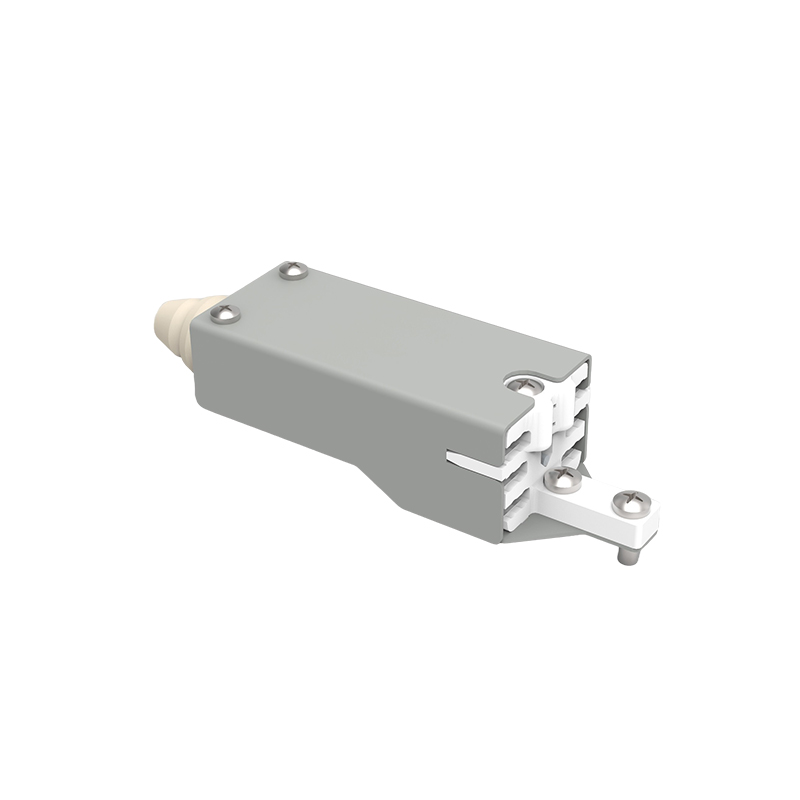

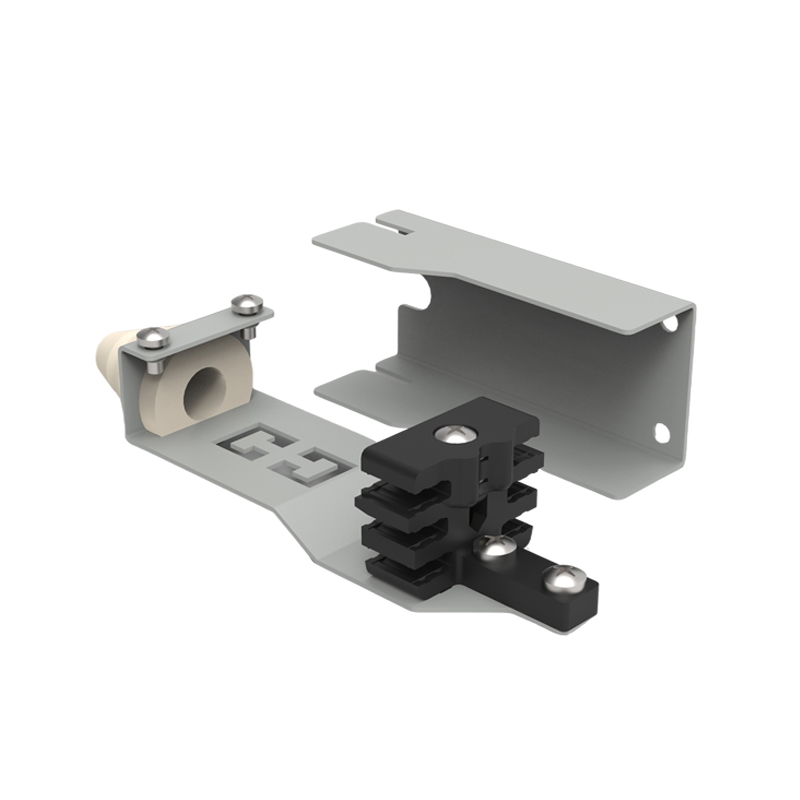

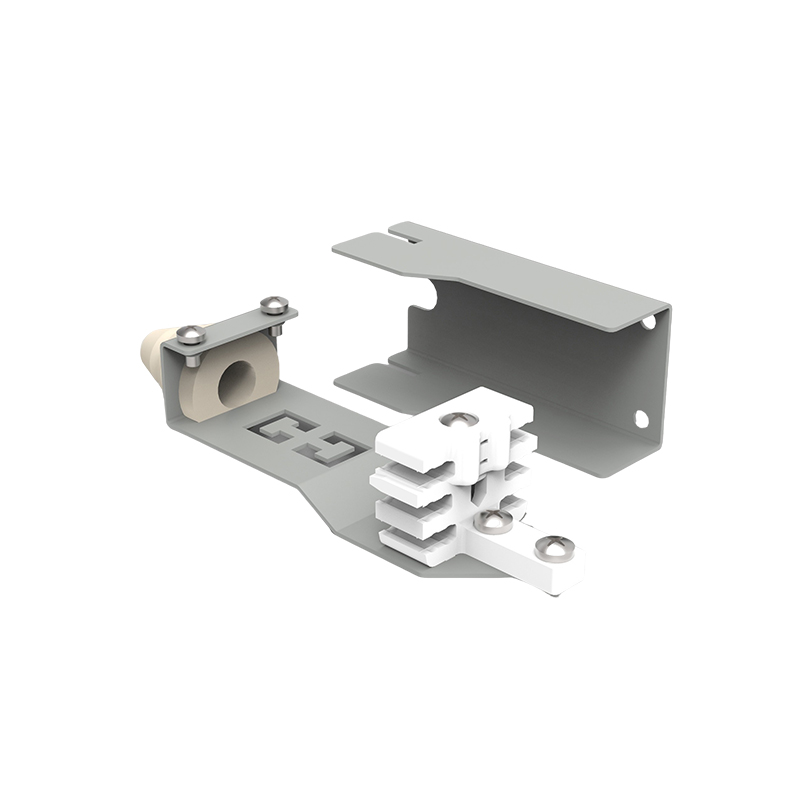

RP-01A Fibre Manifold
Product's code
E1340
DESCRIPTION
The RP-01A Fibre Manifold is designed for outdoor cable fibre distribution. It accepts 12 OFBLT-P-3.1-0.5-PP protective tubes and organizes fibres into 12 fiber bundles which are routed directly to MPS-12 and MPK-12 modules.
