Features:
- Modules with MPO connectors on the rear plate (DC-LGX-12LCDX-2MPO, DC-LGX-12SC-2MPO, MPS-19*)
- Modules with MPO connectors on the front plate (DC-LGX-8ST/1MPO, DC-LGX-8SC/2MPO, DC-LGX-
8LCDX/2MPO) - Up to 14 modules with MPO connectors
- Quick and reliable fibre optic network configuration
- Enables maintenance and service measurements
- Free spaces covered with PZ-3U-7 blanking plates
- Installation in 19” racks with a minimum depth of 300 mm, e.g. STP-19M
- Installation in 21” and/or 23” racks with the use of AD-19 adapters
* – available versions for 12 or 24 SC connectors
| Technical Specifications: PSM-19 MPO Modular Patch Panel | |||||||
|---|---|---|---|---|---|---|---|
| Module type | DC-LGX-8ST/1MPO | DC-LGX-8SC/2MPO | DC-LGX-8LCDX/2MPO | DC-LGX-12LCDX-2MPO | DC-LGX-12SC-2MPO | MPS-19/12SC | MPS-19/24SC |
| Maximum number of modules | 14 | 14 | 14 | 14 | 14 | 12 | 12 |
| MPO connectors on rear plate | no | no | no | yes | yes | yes | yes |
| MPO connectors on front plate | yes | yes | yes | no | no | no | no |
| Dimensions: Width/ Height/Depth [mm] | 483/132/210 | ||||||
| Mass [kg] | 2 | ||||||
| Fixing | front | ||||||
| Housing material | aluminium | ||||||

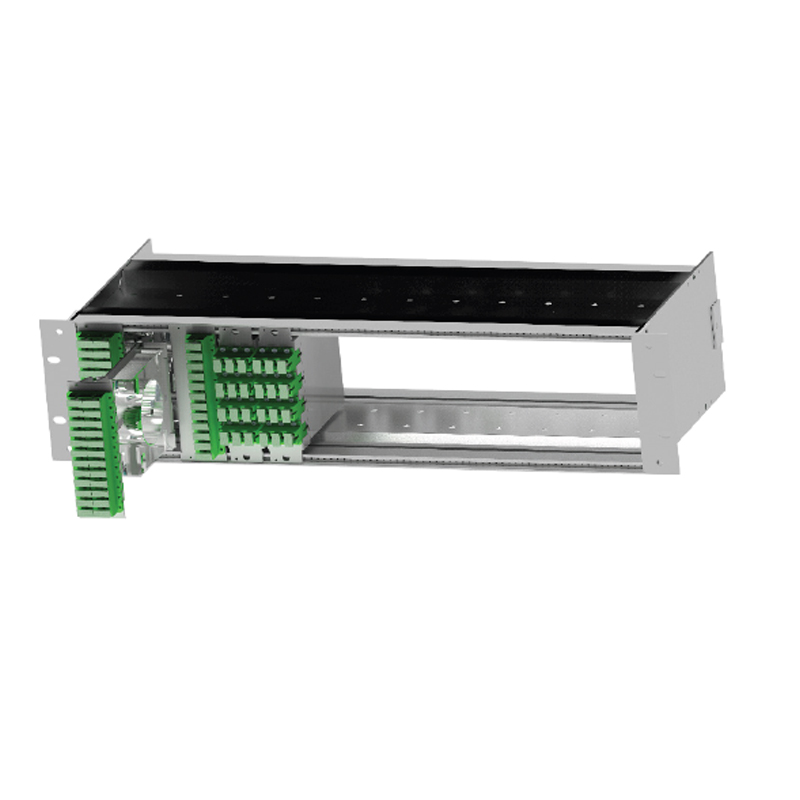

PSM-19 MPO Modular Patch Panel
Product's code
DESCRIPTION
PSM-19 MPO Modular Patch Panel: A flexible 19-inch solution supporting up to 14 LGX-compatible MPO modules for quick and reliable fiber configuration. Ideal for high-density environments, the aluminum panel enables easy maintenance and is compatible with 19″, 21″, and 23″ racks (min. 300 mm depth).
TECHNOLOGY
FTTx
ZASTOSOWANIE WEWNĘTRZNE
DATA CENTER
