Features:
- 19” patch panel for connection of 4 or 12 MPO connectors with 96 LC connectors
- Installation in 19” racks with a minimum depth of 300 mm, e.g. STP-19M
- Installation in 21” and/or 23” racks with the use of AD-19 adapters
- Protection of patchcords with the use of PO-2 patchcord management shelves
- Bearing guided draw-out mechanism
- 70 mm distance between door surface and adapter plate
- Possibility of protection against rodents
| Technical Specifications: PS-19 MPO Patch Panel | ||
|---|---|---|
| PS-19MPO/96LC/4xMPO/1U | PS-19MPO/96LC/12xMPO/1U | |
| Number of adapters on the front plate / connector standard | 96/LC | 96/LC |
| Number of adapters on the rear plate / connector standard | 4/MPO | 12/MPO |
| Recommended LC-MPO patchord length [mm] | 355 | 355 |
| Dimensions: Width/Height/Depth [mm] | 483/33/202 | 483/33/202 |
| Mass [kg] | 2,5 | 2,5 |
| Fixing | front | front |
| Housing material / colour | steel sheet / RAL 7035 | steel sheet / RAL 7035 |

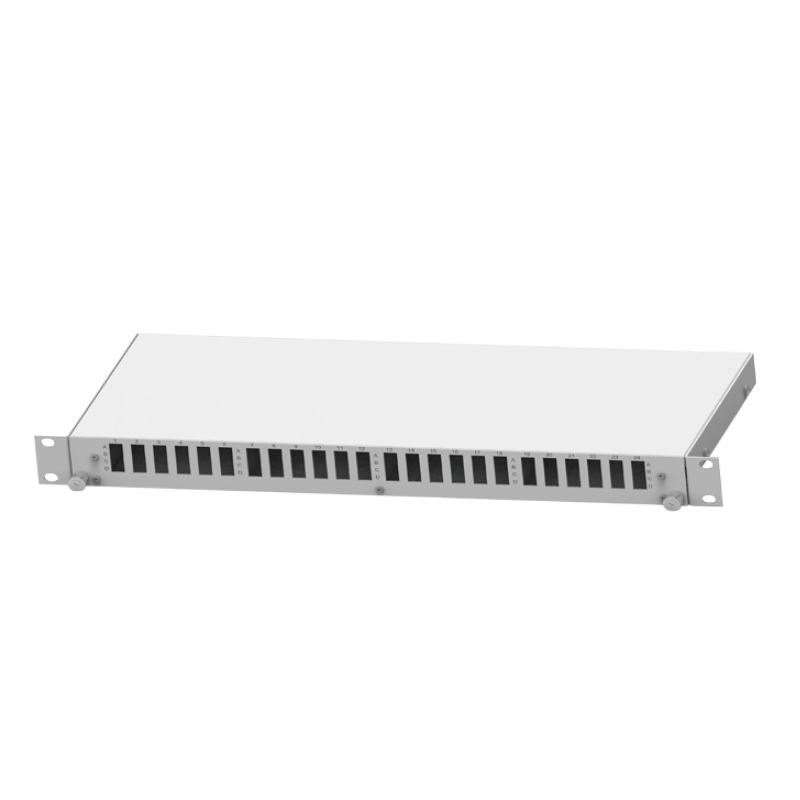

PS-19 MPO Patch Panel
Product's code
DESCRIPTION
PS-19 MPO Patch Panel for 19″ racks enables high-density connectivity, linking 96 LC connectors (front) with 4 or 12 MPO connectors (rear). Features a bearing guided draw-out mechanism, 70 mm adapter plate distance, and protection against rodents. Fits 19″ racks (min. 300 mm depth).
TECHNOLOGY
FTTx
ZASTOSOWANIE WEWNĘTRZNE
DATA CENTER
