Features:
- 19” 2U patch panel for MPO fanouts
- Installation in 19” racks with a minimum depth of 300 mm, e.g. STP-19M
- Extendable drawer design with roller guides
- Installation in 21” and/or 23” racks with the use of AD-19 adapters
Components:
- Front plate with holes for fibre optic adapters
- Installation kit
| Product Name | PS-19/288LC/2U Fibre Optic Patch Panel |
| Number of connectors on the front plate | 144 LC Duplex (288 LC), 24 MPO |
| Connector standard | LC, MPO |
| Dimensions: Width/Depth/Height [mm] | 483 x 88 x 202 |
| Mass [kg] | 2,5 |
| Operation environment | from +5°C to +45°C, 85% Relative Humidity at +20°C |
| Housing material/colour | powder coated steel sheet/RAL 7035 |

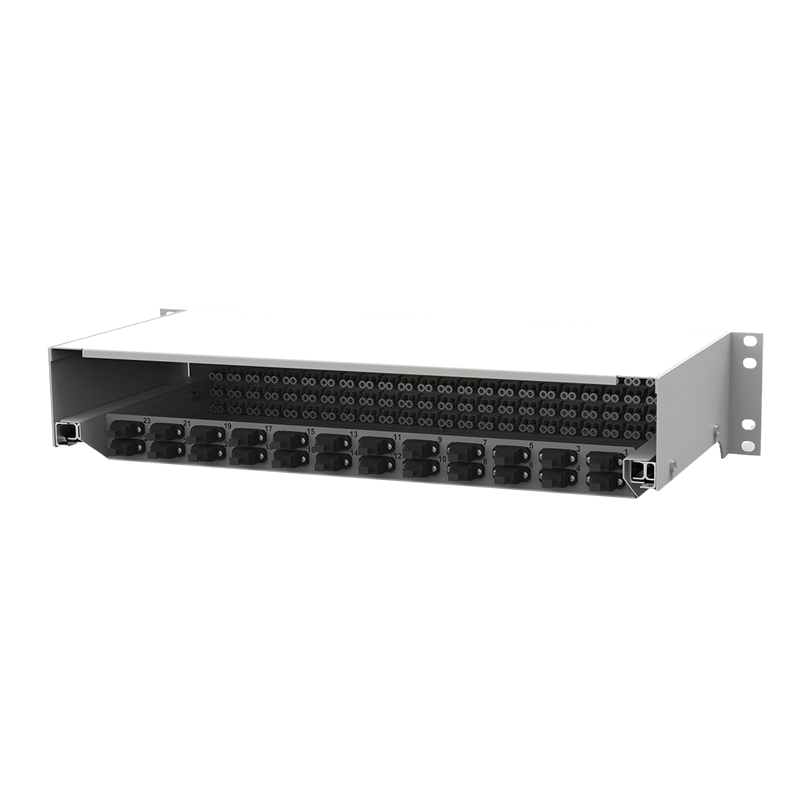

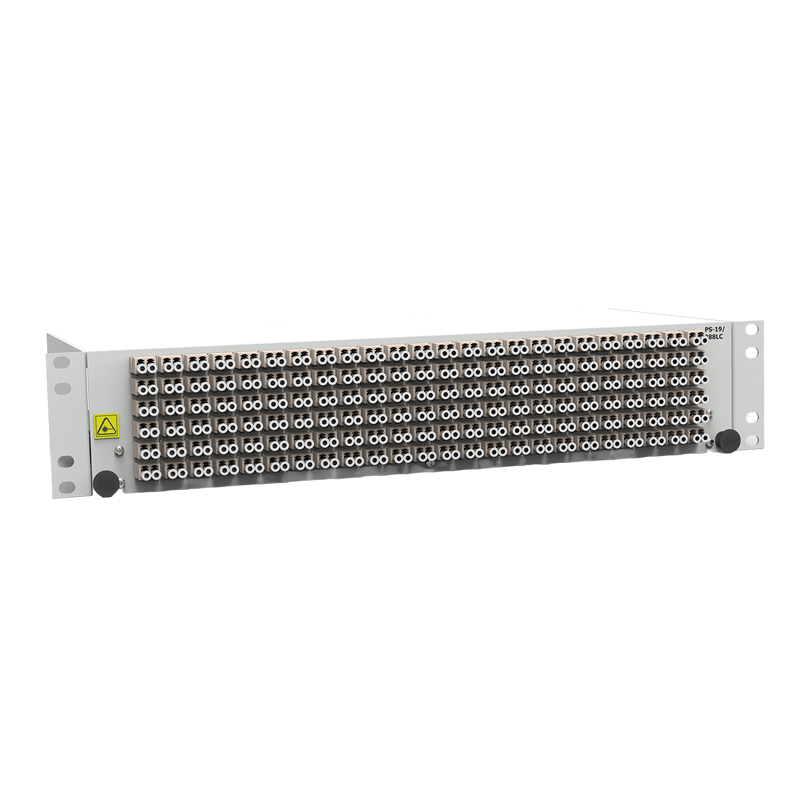

PS-19/288LC/2U Fibre Optic Patch Panel
Product's code
DESCRIPTION
PS-19/288LC/2U 19″ 2U Patch Panel is dedicated to MPO fanouts. It accommodates 144 LC Duplex (288 LC) and 24 MPO connectors on the front plate. The design includes an extendable drawer with roller guides. It is suitable for installation in 19” racks and adaptable for 21”/23” racks using AD-19 adapters.
TECHNOLOGY
FTTx
ZASTOSOWANIE WEWNĘTRZNE
DATA CENTER
