Features:
- 19” patch panel for 24 adapters mounted at an angle to the plane of the front plate
- Front plate divided into two sections
- Installation in 19” racks with a minimum depth of 300 mm, e.g. STP-19M
- Installation in 21” and/or 23” racks with the use of AD-19 adapters
- Protection of patchcords with the use of PO-2 patchcord management shelves
- Bearing guided draw-out mechanism
- 70 mm distance between door surface and adapter plate
- Possibility of protection against rodents
- Slot on the front plate above the adapters for descriptive labels
Optional Accessories:
- LC DX adapters without flanges
| Technical Specifications: PS-19 24 1U 24LC_K-DC Patchpanel | |
|---|---|
| Connector capacity | 24 SC or LC DX adapters without flanges |
| Dimensions: Width/Height/Depth [mm] | 438x44x278 |
| Mass [kg] | 2 |
| Fixing | front |
| Housing material / colour | steel sheet / RAL 7035 |
| Recommended pigtail length, 0.9 mm buffered fibre [m] | 1,5 |

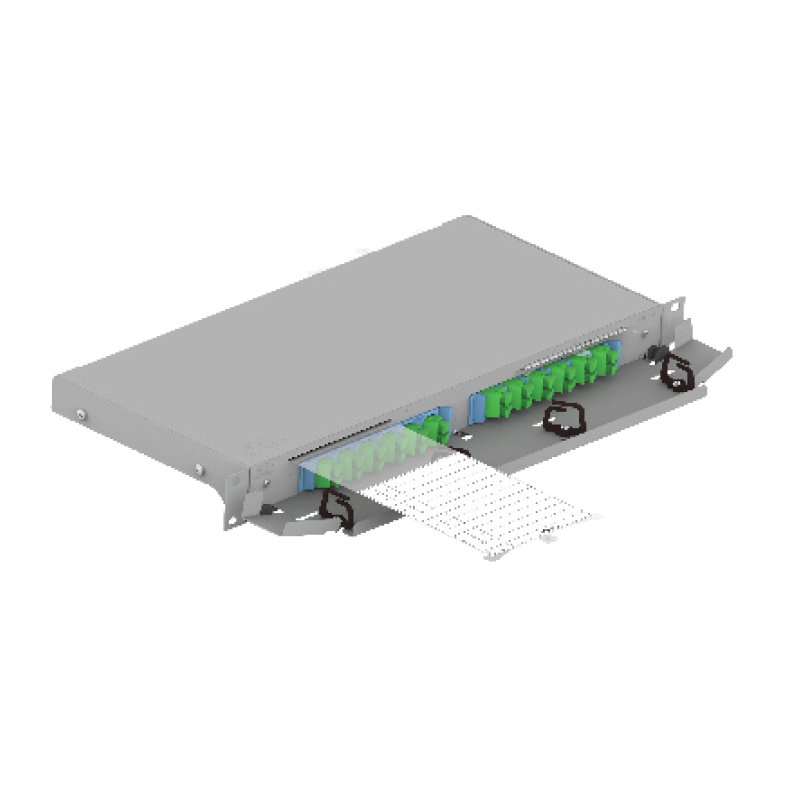

PS-19 24 1U 24LC_K-DC Patchpanel
Product's code
DESCRIPTION
PS-19 24 1U 24LC_K-DC Patchpanel: 19-inch, 1U patch panel designed for 24 angled SC or LC DX adapters. Features a bearing guided draw-out mechanism and a front plate divided into two sections. Ideal for high-density 19″ rack installations (min. 300 mm depth, e.g., STP-19M).
TECHNOLOGY
FTTx
ZASTOSOWANIE WEWNĘTRZNE
DATA CENTER
