  • 8, 12, 24 fibre MPO/MTP trunk patchcords
  • Male connectors (with guide-pins), female connectors (without guide-pins)
  • Type A, Type B, Type C polarities
  • SM fibres (G.652D or G.657A2) and MM fibres (OM3 or OM4)
  • Ferrule endface angle 8° (APC) or 0° (PC)
  • LSZH cable jackets
  • Standard lengths: 1 m, 2m, 5 m, 10 m, 20 m, 50 m. Custom lengths available

SM Connectors

Specification MPO PC MPO PC PREMIUM MPO APC MPO APC PREMIUM
Ferrule Endface Angle
Insertion Loss IL [dB] ≤0.7 ≤0.35 ≤0.7 ≤0.35
Return Loss RL [dB] ≥55 ≥65
Durability (1000 mate/demate cycles) IL change <0.2 dB
Operating temperature [°C] -40 to +75
Storage temperature [°C] -40 to +85
Connector body colour Yellow Green

MM Connectors

Specification MPO PC OM3 MPO PC OM3 PREMIUM MPO PC OM4 MPO PC OM4 PREMIUM
Ferrule Endface Angle
Insertion Loss IL [dB] ≤0.7 ≤0.35 ≤0.7 ≤0.35
Return Loss RL [dB] ≥30
Durability (1000 mate/demate cycles) IL change <0.2 dB
Operating temperature [°C] -40 to +75
Storage temperature [°C] -40 to +85
Connector body colour Turquoise Violet

————–

SM Connectors

Specification MTP APC MTP APC PREMIUM
Ferrule Endface Angle
Insertion Loss IL [dB] ≤0.75 ≤0.35
Return Loss RL [dB] ≥60
Durability (1000 mate/demate cycles) IL change <0.2 dB
Operating temperature [°C] -10 to +75
Storage temperature [°C] -40 to +85
Connector body colour Yellow Green

MM Connectors

Specification MTP PC OM3 MTP PC OM3 PREMIUM MPO PC OM4 MPO PC OM4 PREMIUM
Ferrule Endface Angle
Insertion Loss IL [dB] ≤0.6 ≤0.35 ≤0.6 ≤0.35
Return Loss RL [dB] ≥20
Durability (1000 mate/demate cycles) IL change <0.2 dB
Operating temperature [°C] -10 to +75
Storage temperature [°C] -40 to +85
Connector body colour Turquoise Violet





    BACK

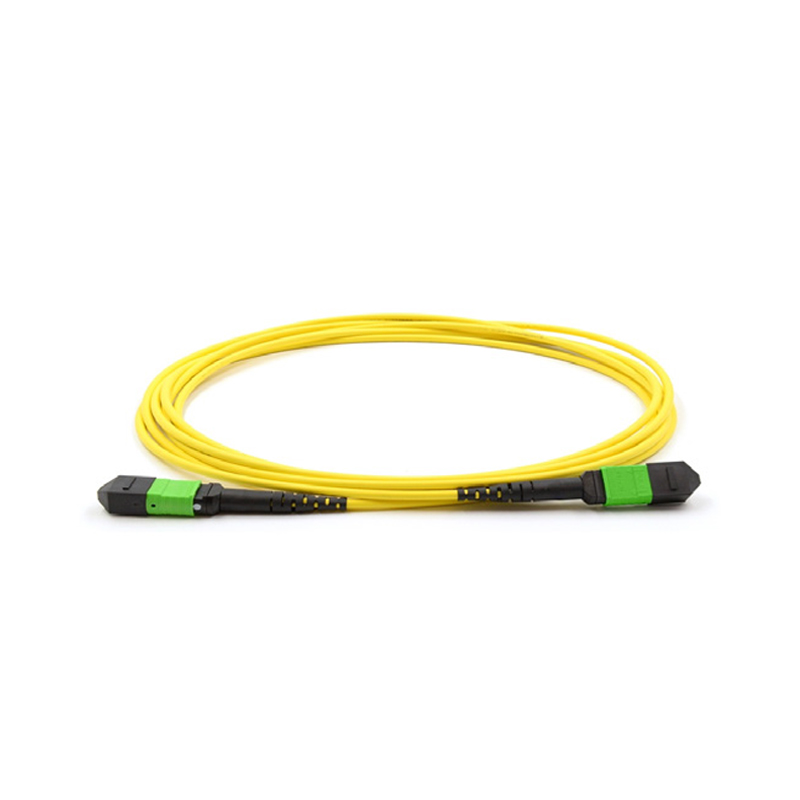

    Patchcord with MPO/MTP connectors

    Product's code

    DESCRIPTION

    Patchcord with MPO/MTP Connectors – high-density trunk patchcords available with 8, 12, or 24 fibres. Offered in male (with guide pins) and female (without pins) versions, with Type A, B, or C polarity options. Compatible with SM fibres (G.652D, G.657A2) and MM fibres (OM3, OM4), ferrule endface 8° (APC) or 0° (PC). Durable LSZH jackets and a wide range of standard lengths (1 m to 50 m) with custom options ensure flexibility for data center and telecom applications.


    TECHNOLOGY

    FTTx
    ZASTOSOWANIE WEWNĘTRZNE
    DATA CENTER
