  • 8, 12, 24 fibre MPO/MTP connectors
  • Male version (with guide-pins), female version (without guide-pins)
  • SM fibres (G.652D or G.657A2) and MM fibres (OM3 or OM4)
  • Ferrule endface angle 8° (APC) or 0° (PC)
  • Different cable diameters and polarity types

SM Connectors

Specification MPO PC MPO PC PREMIUM MPO APC MPO APC PREMIUM
Ferrule Endface Angle
Insertion Loss IL [dB] ≤0.7 ≤0.35 ≤0.7 ≤0.35
Return Loss RL [dB] ≥55 ≥65
Durability (1000 mate/demate cycles) IL change <0.2 dB
Operating temperature [°C] -40 to +75
Storage temperature [°C] -40 to +85

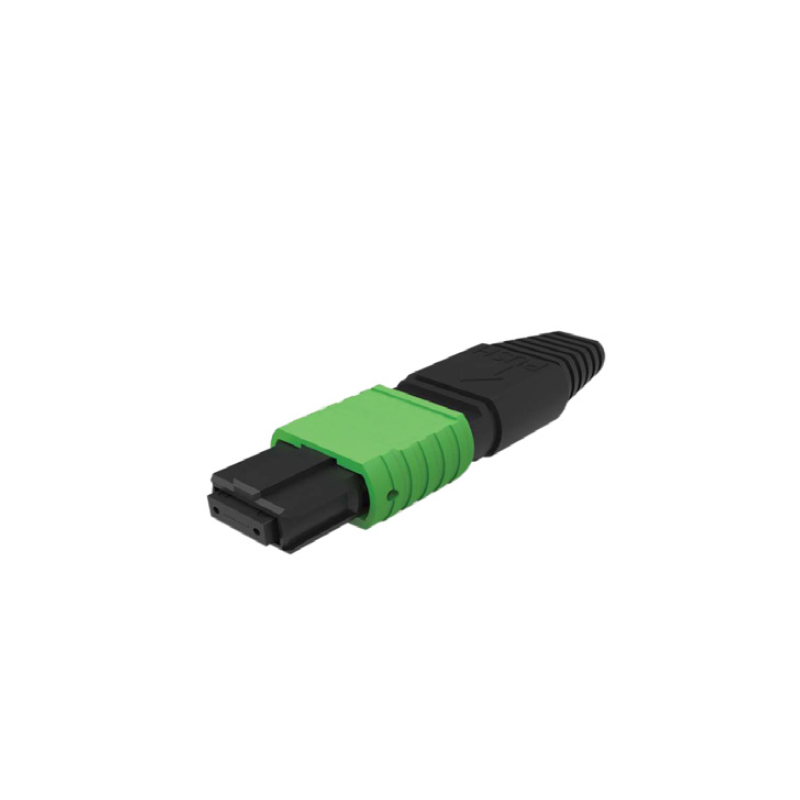

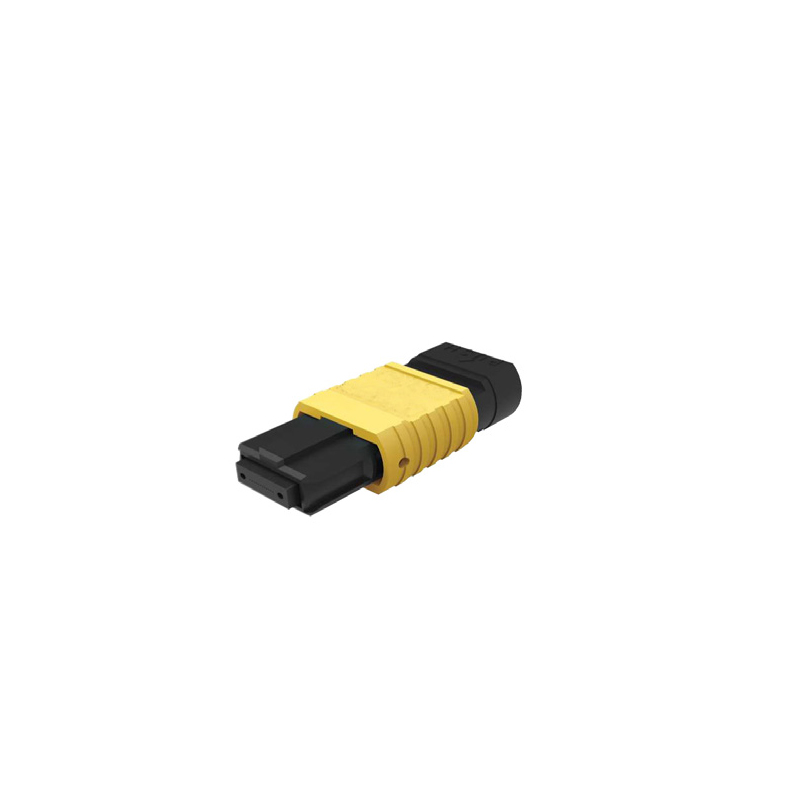

Connector body colour Yellow Green

MM Connectors

Specification MPO PC OM3 MPO PC OM3 PREMIUM MPO PC OM4 MPO PC OM4 PREMIUM
Ferrule Endface Angle
Insertion Loss IL [dB] ≤0.7 ≤0.35 ≤0.7 ≤0.35
Return Loss RL [dB] ≥30
Durability (1000 mate/demate cycles) IL change <0.2 dB
Operating temperature [°C] -40 to +75
Storage temperature [°C] -40 to +85

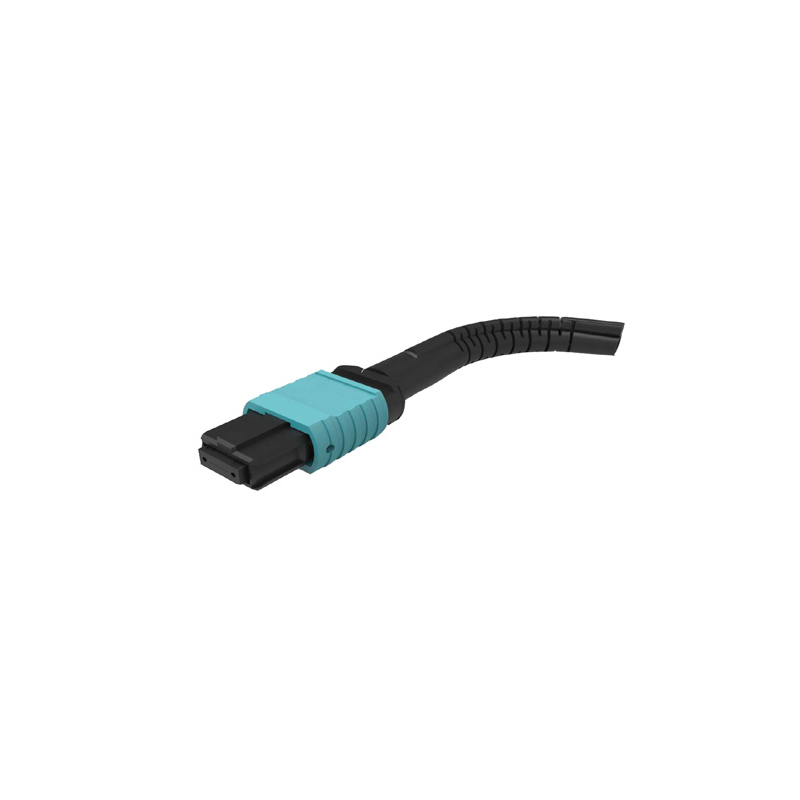

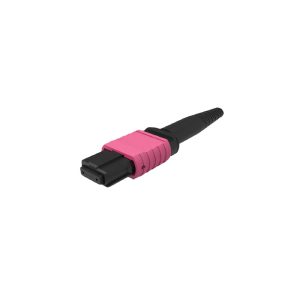

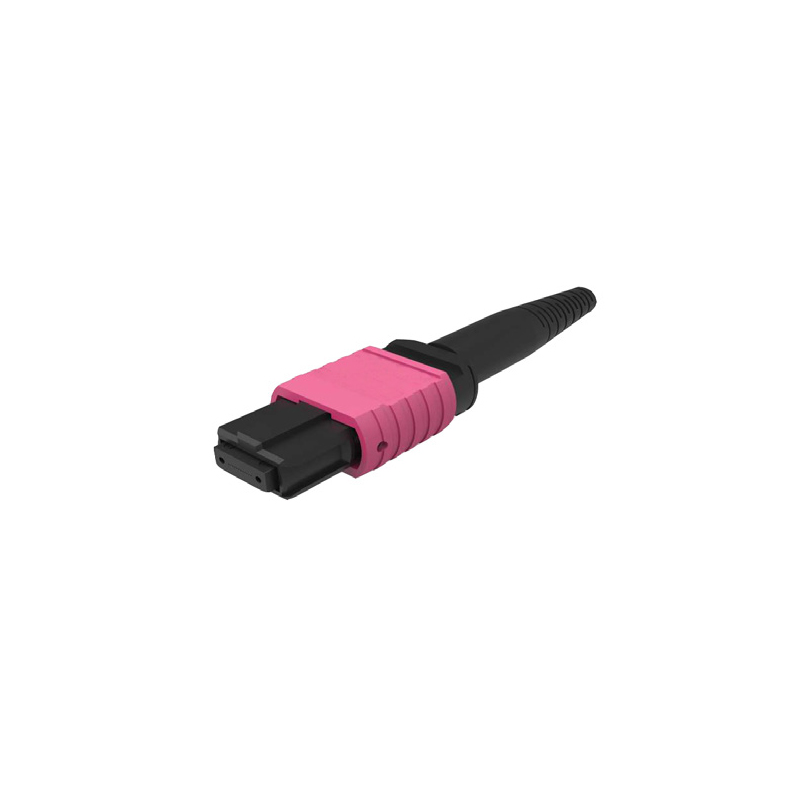

Connector body colour Turquoise Violet





    BACK

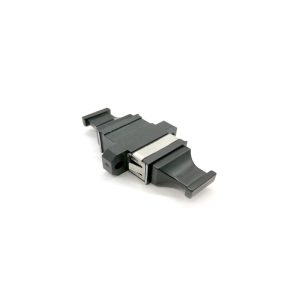

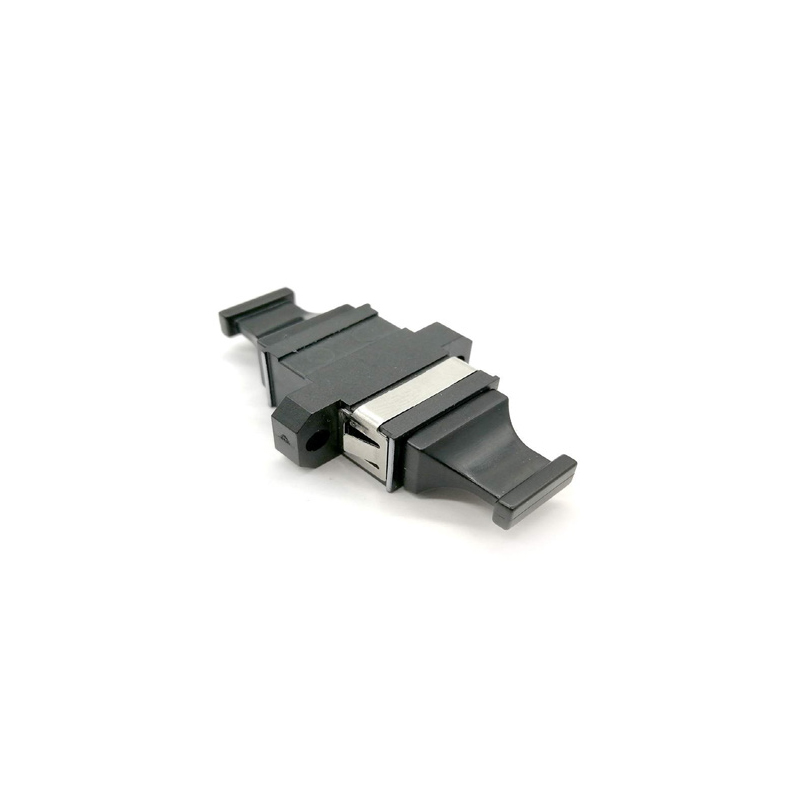

    MPO/MTP Connectors and Adapters

    Product's code

    DESCRIPTION

    MPO/MTP Connectors and Adapters are compact and reliable solutions for high-density cabling in data centers and telecommunication networks. Available in 8, 12, and 24 fibre versions, with male (guide-pin) and female (no pin) options. They support SM fibres (G.652D, G.657A2) and MM fibres (OM3, OM4), with ferrule endface angles of 8° (APC) or 0° (PC).


    TECHNOLOGY

    FTTx
    ZASTOSOWANIE WEWNĘTRZNE
    DATA CENTER
