- 8, 12, 24 Fibre Breakout Cable MPO/MTP to LC or SC simplex connectors
- LC or SC breakout connectors
- Male connectors (with guide-pins), female connectors (without guide-pins))
- SM fibres (G.652D or G.657A2) and MM fibres (OM3 or OM4)
- Ferrule endface angle 8° (APC) or 0° (PC)
- 0.9 mm buffered fibre LSZH leads
- Standard lengths: 35 cm, 45 cm, 55 cm, 65 cm, 85 cm. Custom lengths available
| SM Connectors | MPO PC | MPO PC PREMIUM | MPO APC | MPO APC PREMIUM |
|---|---|---|---|---|
| Ferrule Endface Angle | 0° | 0° | 8° | 8° |
| Insertion Loss IL [dB] | ≤0.7 | ≤0.35 | ≤0.7 | ≤0.35 |
| Return Loss RL [dB] | ≥55 | ≥65 | ||
| Durability (1000 mate/demate cycles) | IL change <0.2 dB | |||
| Operating temperature [°C] | -40 to +75 | |||
| Storage temperature [°C] | -40 to +85 | |||
| Connector body colour | Yellow | Green | ||
| MM Connectors | MPO PC OM3 | MPO PC OM3 PREMIUM | MPO PC OM4 | MPO PC OM4 PREMIUM |
|---|---|---|---|---|
| Ferrule Endface Angle | 0° | 0° | 0° | 0° |
| Insertion Loss IL [dB] | ≤0.7 | ≤0.35 | ≤0.7 | ≤0.35 |
| Return Loss RL [dB] | ≥30 | |||
| Durability (1000 mate/demate cycles) | IL change <0.2 dB | |||
| Operating temperature [°C] | -40 to +75 | |||
| Storage temperature [°C] | -40 to +85 | |||
| Connector body colour | Turquoise | Violet | ||
| SM Connectors | SM LC/PC | SM SC/APC |
|---|---|---|
| Ferrule Endface Angle | 0° | 8° |
| Insertion Loss IL [dB] | 0.2 | 0.15 |
| Return Loss RL [dB] | ≥55 | ≥65 |
| Durability | 1000 mate/demate cycles | |
| Operating temperature [°C] | -40 to +85 | |
| Ferrule diameter [mm] | 1.5 | 2.5 |
| MM Connectors | MM LC/PC | MM SC/PC |
|---|---|---|
| Ferrule Endface Angle | 0° | 0° |
| Insertion Loss IL [dB] | 0.2 | 0.2 |
| Return Loss RL [dB] | ≥50 | ≥40 |
| Durability | 1000 mate/demate cycles | |
| Operating temperature [°C] | -40 to +85 | |
| Ferrule diameter [mm] | 1.5 | 2.5 |
| SM Connectors | MTP APC | MTP APC PREMIUM |
|---|---|---|
| Ferrule Endface Angle | 8° | 8° |
| Insertion Loss IL [dB] | ≤0.75 | ≤0.35 |
| Return Loss RL [dB] | ≥60 | |
| Durability (1000 mate/demate cycles) | IL change <0.2 dB | |
| Operating temperature [°C] | -10 to +70 | |
| Storage temperature [°C] | -40 to +85 | |
| Connector body colour | Yellow | Green |
| MM Connectors | MTP PC OM3 | MTP PC OM3 PREMIUM | MTP PC OM4 | MTP PC OM4 PREMIUM |
|---|---|---|---|---|
| Ferrule Endface Angle | 0° | 0° | 0° | 0° |
| Insertion Loss IL [dB] | ≤0.6 | ≤0.35 | ≤0.6 | ≤0.35 |
| Return Loss RL [dB] | ≥20 | |||
| Durability (1000 mate/demate cycles) | IL change <0.2 dB | |||
| Operating temperature [°C] | -10 to +70 | |||
| Storage temperature [°C] | -40 to +85 | |||
| Connector body colour | Turquoise | Violet | ||

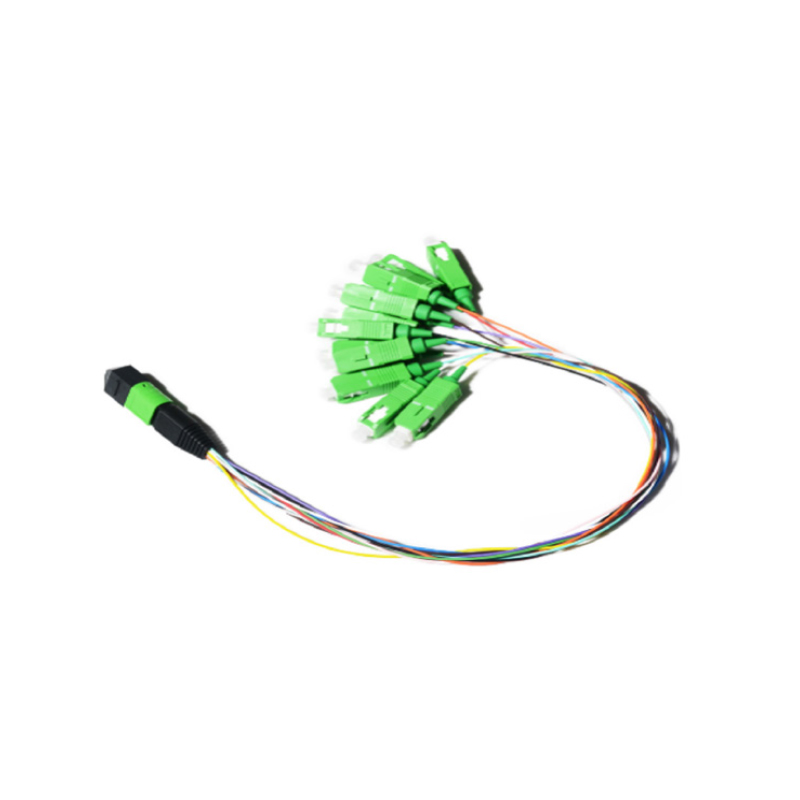

Fibre Breakout Cable MPO/MTP to LC or SC 0.9 mm Buffered Fibre Bundle
Product's code
DESCRIPTION
High-density fibre breakout cable with MPO/MTP to LC or SC connectors, featuring 0.9 mm buffered LSZH leads for easy installation. Available in singlemode (G.652D/G.657A2) or multimode (OM3/OM4) with custom lengths on request.
TECHNOLOGY
FTTx
ZASTOSOWANIE WEWNĘTRZNE
DATA CENTER
