Features:
- Designed for solutions using MPO connectors (Multi-Fiber Push On Connector)
- LGX compatible
- Using MPO connectors can improve the throughput and reliability of connections made in a smaller space
- Provides maximum space savings in IT cabinets and reduces installation time
- MPO connectors are available in male (with pins) and female (without pins) versions. Both are mated using an
MPO adapter - 12-fibre MPO connectors are the most commonly used; 8-fibre and 24-fiber connectors are also available
- The frame allows:
• Installation of up to two MPO adapters
• Installation of 8 SC adapters without flanges
• Storage of slack patchcord cables in a dedicated patchcord storage tray
• Installation in PSM-19 MPO Modular patch panels
• Installation in PSM-19/144/3U Modular patch panels. It is necessary to replace the fixing latches with fixing
screws.
• Installation in DC-LGX-PPO-1 frames
Accessories:
- 1 x DC-LGX-8SC/2MPO module frame
- 2 x fixing latch for DC-LGX-PPO-1 frame
Additional accessories:
- MPO-SC-8J-1 patchcord
- SC adapter without flanges
| Dimensions [mm]: Width x Height x Depth | 128x28x116 |
| Maximum number of MPO connectors | 2 |
| Maximum number of SC connectors | 8 |
| Adapter standard on front panel | SC without flanges, MPO |
| Maximum length of a single slack fibre [m] | 1 |

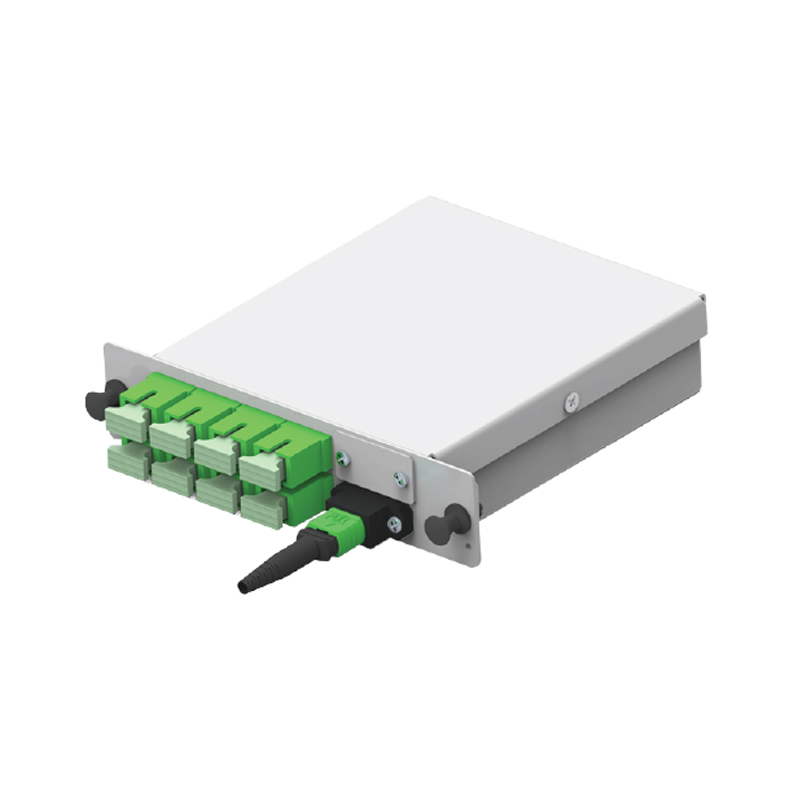

DC-LGX-8SC/2MPO Module
Product's code
DESCRIPTION
The DC-LGX-8SC/2MPO Module is a high-density, LGX compatible solution specifically designed for networks utilizing MPO (Multi-Fiber Push On Connector) technology. This module allows for the installation of up to two MPO adapters and 12 SC adapters. Using MPO connectors improves throughput and connection reliability while providing maximum space savings in IT cabinets and reducing installation time.
TECHNOLOGY
FTTx
ZASTOSOWANIE WEWNĘTRZNE
DATA CENTER
