Features:
- Designed for solutions using MPO connectors (Multi-Fiber Push On Connector)
- LGX compatible
- Using MPO connectors can improve the throughput and reliability of connections made in a smaller space
- Provides maximum space savings in IT cabinets and reduces installation time
- MPO connectors are available in male (with pins) and female (without pins) versions. Both are mated using an
MPO adapter - 12-fibre MPO connectors are the most commonly used; 24-fiber connectors are also available
- The module allows:
• Installation of up to two MPO adapters
• Installation of 12 LC Duplex adapters i.e. 24 LC adapters
• Storage of slack patchcord cables in a dedicated patchcord storage tray
• Installation in PSM-19/144/3U Modular patch panels. It is necessary to replace the fixing latches with fixing
screws.
• Installation in DC-LGX-PPO-1 frames
Accessories:
- 1 x DC-LGX-12SC-2MPO module frame
- 2 x fixing latch for DC-LGX-PPO-1 frame
Additional accessories:
- MPO-SC-12J-1 patchcord
- SC adapter
- Adapter fixing screws
| Dimensions [mm]: Width x Height x Depth | 28,4x128x116 |
| Maximum number of MPO connectors | 2 |
| Maximum number of LC connectors | 24 |
| Adapter standard on front panel | LC Duplex |
| Maximum length of a single slack fibre [m] | 1 |

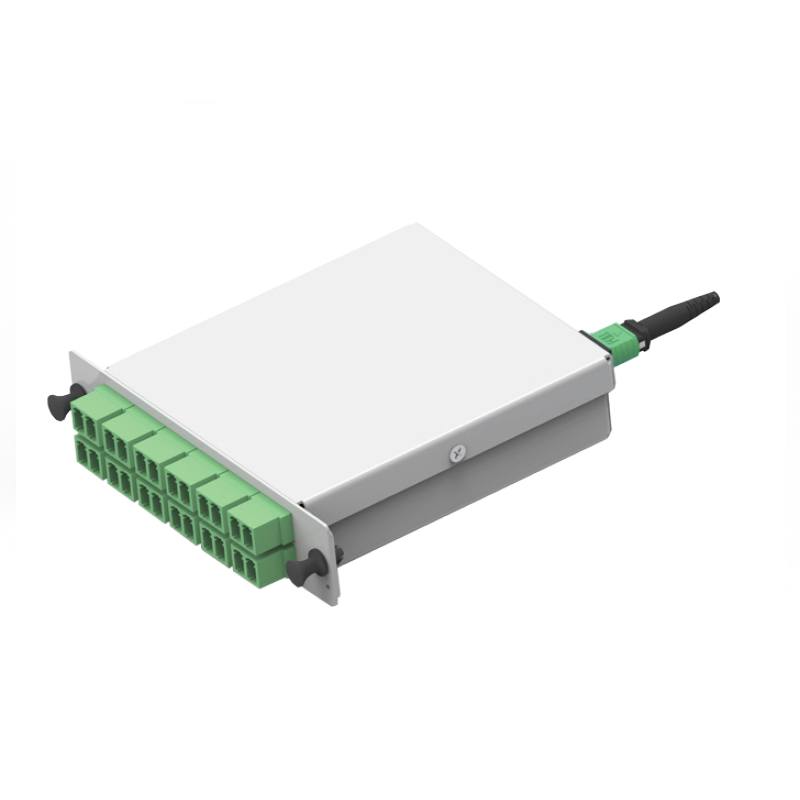

DC-LGX-12LCDX-2MPO Module
Product's code
DESCRIPTION
The DC-LGX-12LCDX-2MPO Module is an LGX compatible solution designed for high-density networks utilizing MPO (Multi-Fiber Push On Connector) technology. This module allows for the installation of up to two MPO adapters and 12 LC Duplex adapters.
TECHNOLOGY
FTTx
ZASTOSOWANIE WEWNĘTRZNE
DATA CENTER
