- assembled according to Active Core Alignment technology
- provide the highest transmission and operating parameters
- comply with the standards: IEC 61754-13, PN-EN50377-2-1, ZN-05/TP S.A.-044
- available in PC and APC versions, and in duplex construction
| connector type | FC DIAMOND | test conditions | ||||||
| SM PC 0° | SM APC 8° | |||||||
| insertion loss IL [dB] | 0,2 | IEC 61300-3-4; I=1300/1550 nm | ||||||
| return loss RL [dB] | 50 | 70 | IEC 61300-3-6; I=1300/1550 nm | |||||
| repeatability of IL [dB] | ±0,1 | over service life | ||||||
| service life | over 1000 mate/demate cycles | |||||||
| operating temperature [°C] | -40 to +85 | depending on cable specification | ||||||
| ferrule diameter [mm] | 2,5 | |||||||
| code | FC0 | FC8 | ||||||

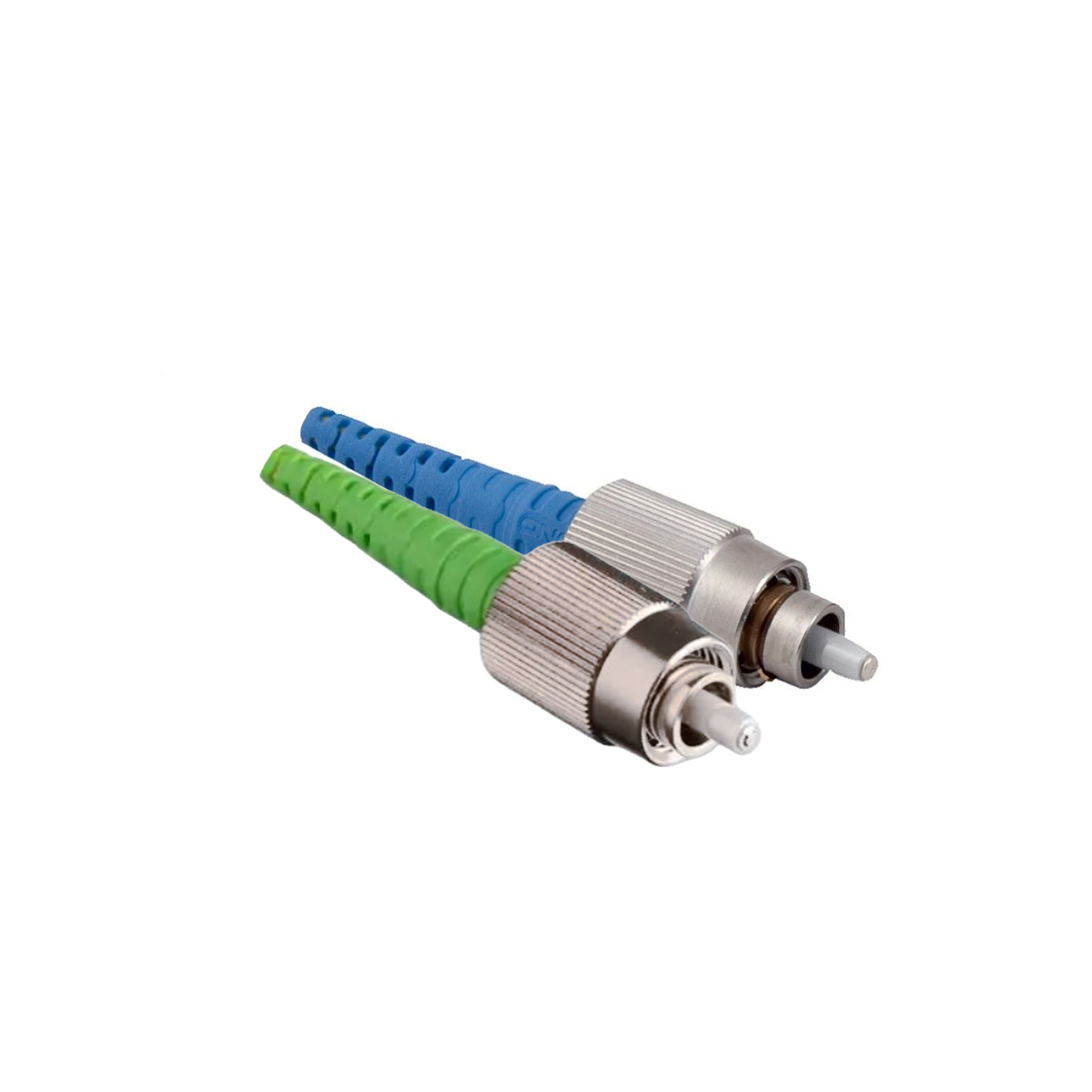

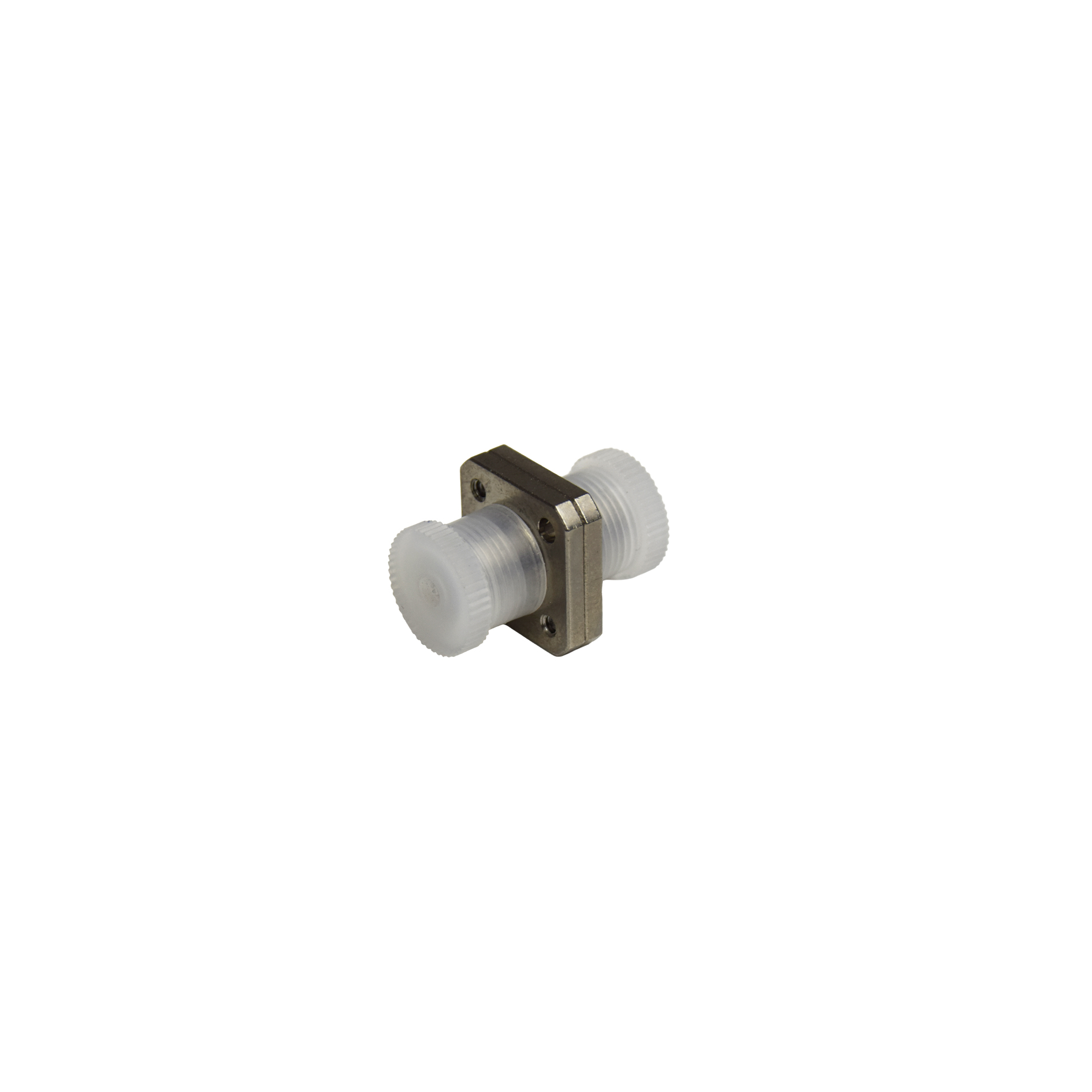

FC DIAMOND connectors and adapters
Product's code
A1090
DESCRIPTION
Assembled according to Active Core Alignment technology. FC DIAMOND provide the highest transmission and operating parameters.
TECHNOLOGY
TELEKOM
ACCESS
FTTx
PON
LAN
WAN
MAN
CATV
PRZEMYSŁ
ZASTOSOWANIE WEWNĘTRZNE
