- assembled according to Active Core Alignment technology
- high performance of 0.1 dB APC connectors due to the light emission angle control and application of hig precision adapter sleeves
- compliant with EN 60825-1, EN 60825-2, EN 61754-15
- SM and MM versions available with PC or APC ferrules in Simplex or Duplex configurations
| Connector grade | 0,1 dB | Standard | Test conditions | |
|---|---|---|---|---|
| Transmission mode | SM | SM | MM | |
| Maximum Insertion Loss IL [dB] | 0,15 | 0,25 | 0,30 | IEC 61300-3-4 SM: λ = 1310 nm/1550 nm MM: λ = 850 nm/ 1300 nm |
| Average Insertion Loss IL [dB] | 0,10 | 0,15 | 0,15 | IEC 61300-3-4 SM: λ = 1310 nm/1550 nm MM: λ = 850 nm/ 1300 nm |
| Return Loss RL [dB] |
≥ 80 for APC
≥ 55 for PC
|
≥ 65 for APC
≥ 45 for PC
|
≥ 20 for PC | IEC 61300-3-6 SM: λ = 1310 nm/1550 nm MM: λ = 850 nm/ 1300 nm |
| Repeatability of IL [dB] | ±0,1 | |||
| Service life | 1000 mate/demate cycles | Over service life | ||
| Operating temperature [°C] | from – 40 to +85 | Depending on cable specification | ||
| Ferrule diameter [mm] | 2,5 | |||

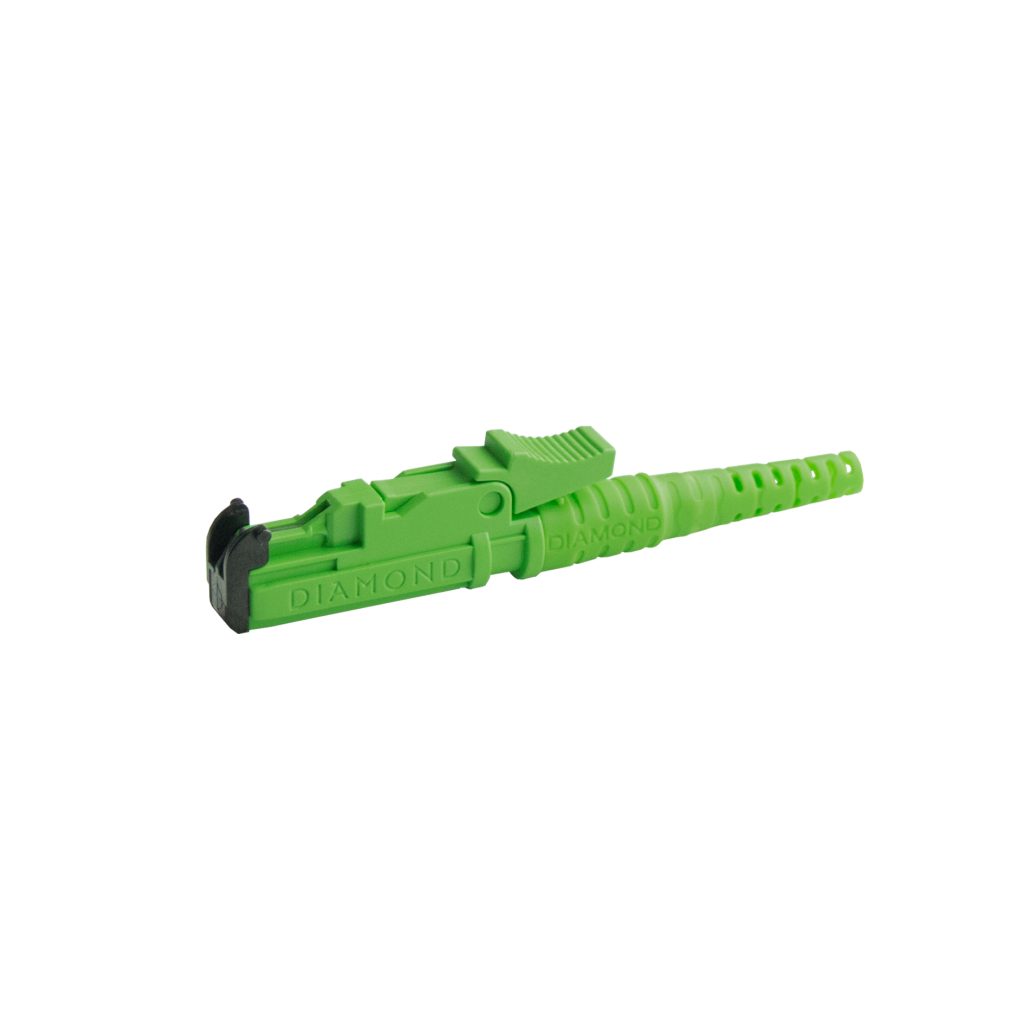

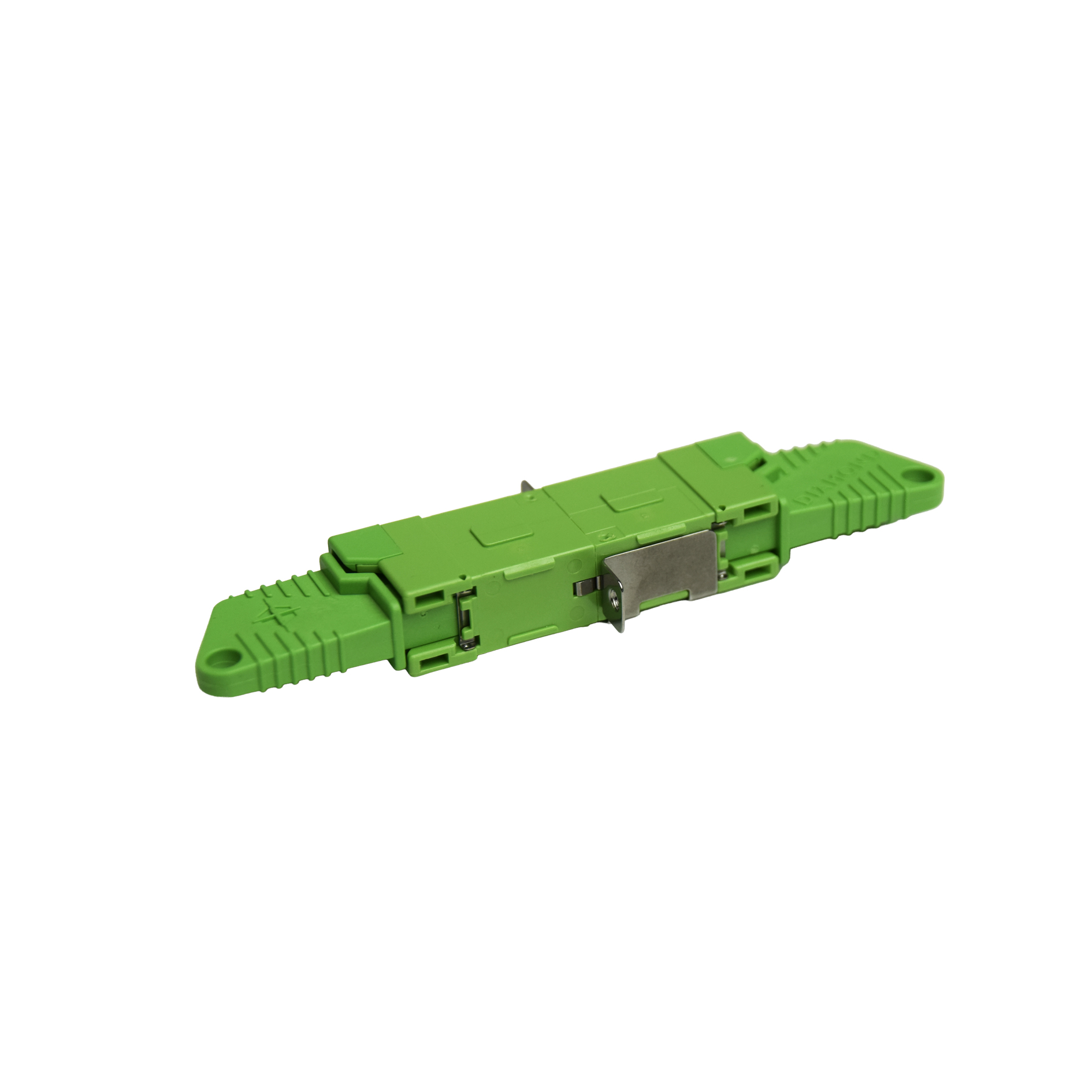

E-2000 DIAMOND CONNECTORS AND ADAPTERS
Product's code
A1020
DESCRIPTION
Assembled according to Active Core Alignment technology. SM and MM versions available with PC or APC ferrules in Simplex or Duplex configurations
TECHNOLOGY
TELEKOM
ACCESS
FTTx
PON
LAN
WAN
MAN
CATV
xWDM
PRZEMYSŁ
ZASTOSOWANIE WEWNĘTRZNE
