- Splice capacity: 576 subscriber side, 24 feeder cable side
- Maximum number of connectors: 576 on the subscriber side, 20 on the feeder cable side (SC or E-200)
- 18 cable entries
- Mounting: 4 screws with expansion plugs
- Dimensions [mm]: 608x567x308
STANDARD EQUIPMENT:
- KS-24 Splice trays – 25 pcs
- TK 9/3 Cable Tie – 100 pcs
- TK 20/5 Cable Tie – 100 pcs
- Rubber protective band for TK 9/3 cable ties – 50 pcs
- Spiral tubing 6 mm in diameter – 100 cm
- Cable Entry Hat-Type 40 mm in diameter – 16 pcs
- DP 13 Cable Gland – 1 pc
- Wall Mounting Kit – 1 pc
ADDITIONAL EQUIPMENT:
- 1×64 PLC Splitters – 9 pcs
- SC or E-2000 Adapters – 585 pcs
- Pigtails terminated with SC or E-2000 connectors – 585 pcs
- 1×32 PLC Splitters (option in place of 1×64 PLC splitters) – 18 pcs

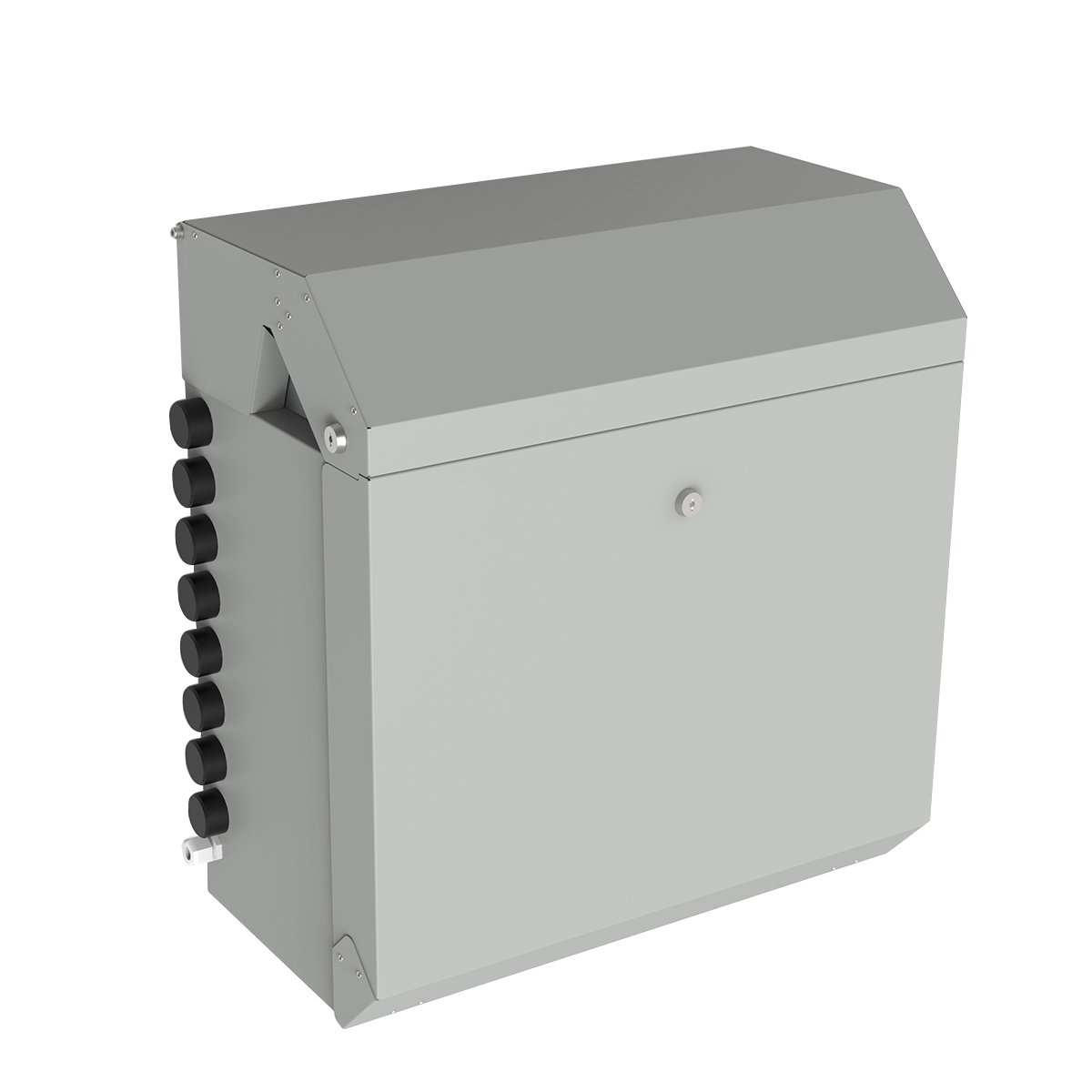

Wall-mounted distribution box – SNA-576
Product's code
DESCRIPTION

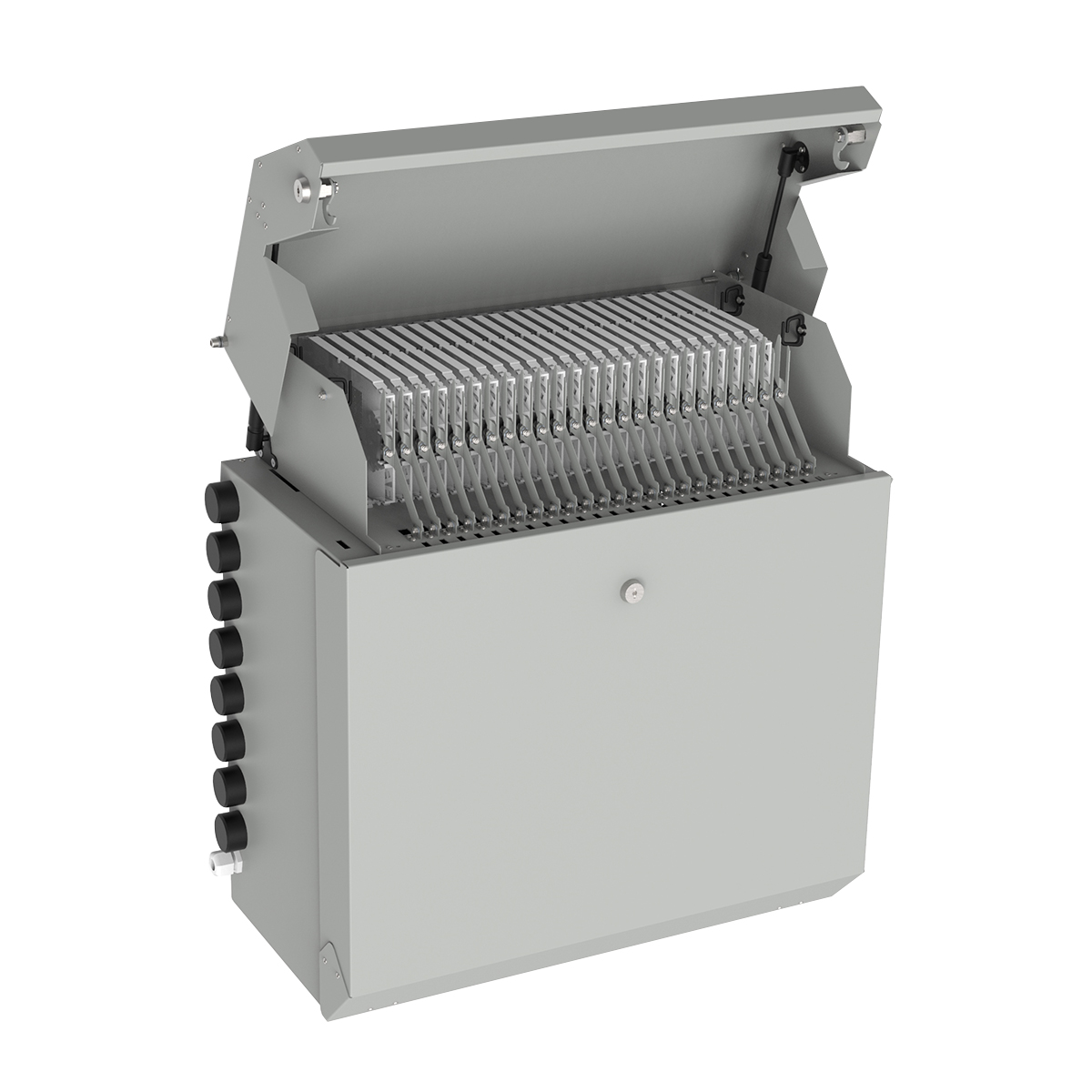

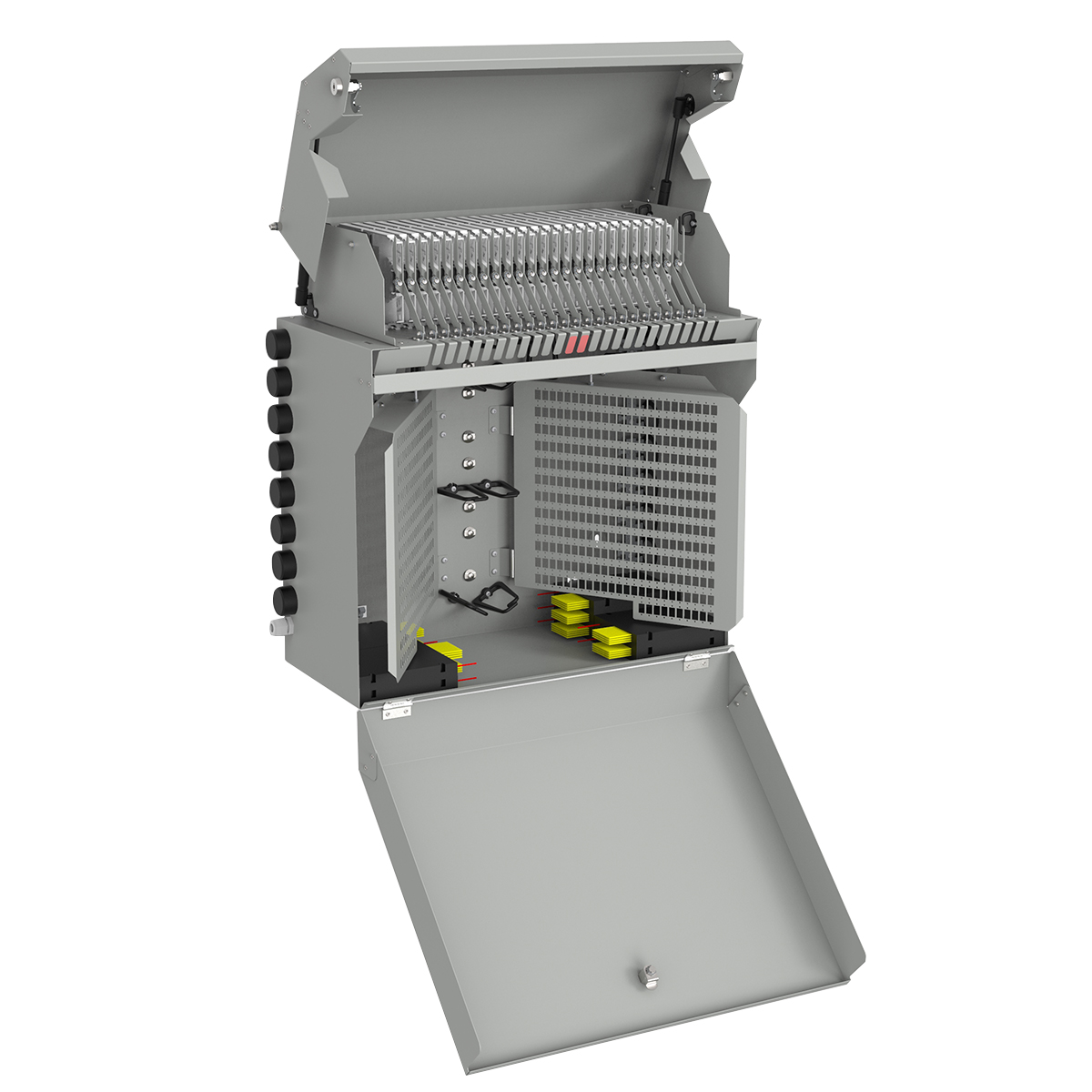

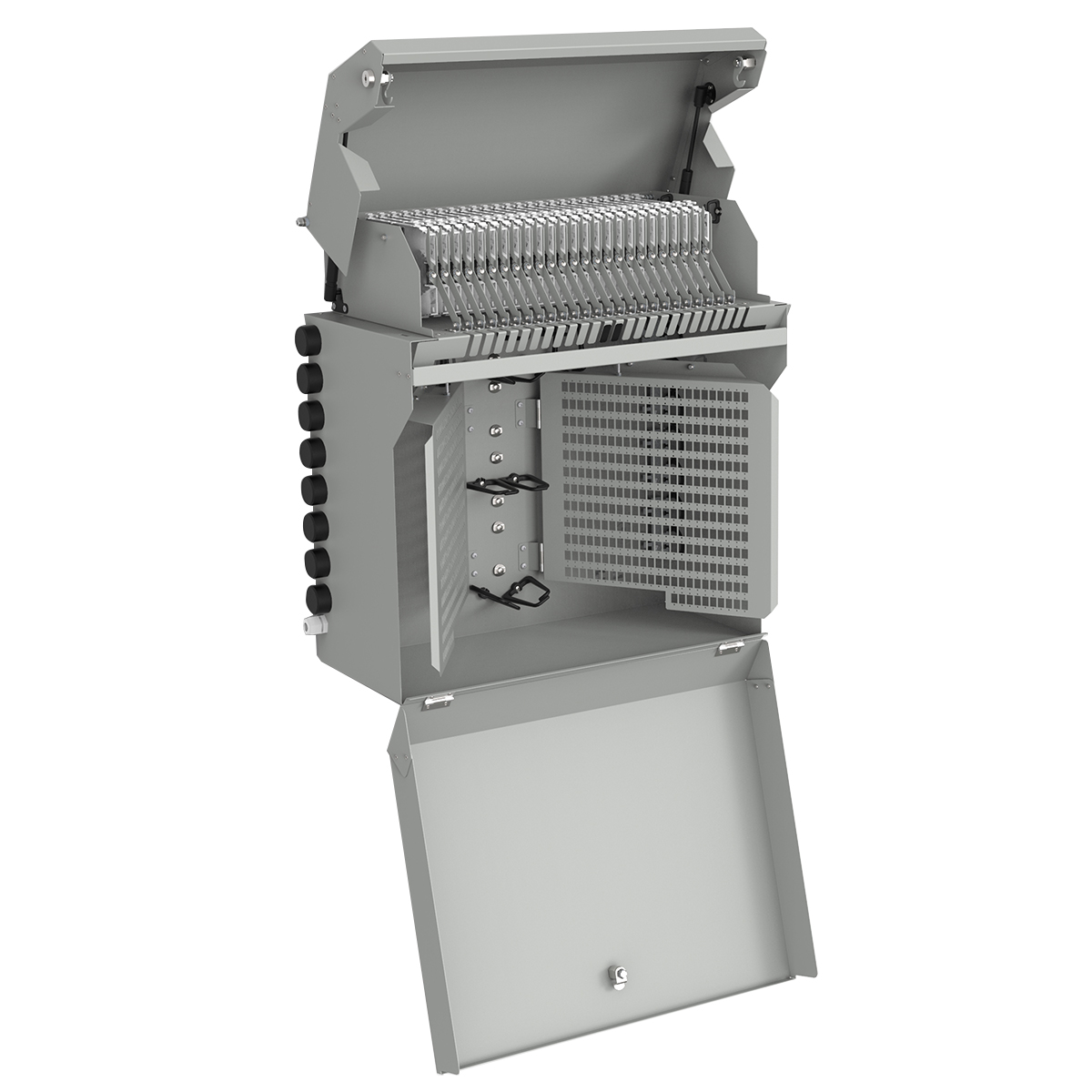

Wall Box for 576 subscribers. Separate top cover with a lock and gas springs provides convenient access to hinged splice trays, while the bottom cover ensures easy access to patch panels and splitters.
TECHNOLOGY
TELEKOM
FTTx
PON
ZASTOSOWANIE ZEWNĘTRZNE
