- enables storage of up to 200 m spare optical fibre cable
- used in places of cable incision/failure as a repair kit – underground plastic pit + splice closure
- made of HDPE
- guarantees high mechanical resistance and withstanding short-time external loads of up to 100kN at 70 cm ground layer
- place with handles for optical fibre splice closure of diameter up to 180 mm and length 450 mm
- making „8 shape” with cable, enables cable repairment without the need to replace pipes
- possibility of installing an uncut cable
- unused holes in the underground plastic pits covered with blank plates or plugs and sealed with soft silicon
- feeder cables enter the ZK-1 pit in 32 to 40 mm diameter polyethylene HDPE cable protection pipes
- the underground plastic pit enables making additional entries for cable outputs
EQUIPMENT:
- underground plastic pit base
- lid
- port plugs
- cable ties
- lid-blocking screws
OPTIONAL EQUIPMENT:
- fiber enclosures FBRU, MUF-1, MUF-2, FOSC 400A, OZKS
- cable tags OZ-1 or OZ-2
| ZK-1 | ZK-3 | |
| number of ports | 3 | 3 to be cut out |
| quantity of protective pipes ⌀40 mm | 9 | 9 to be cut out |
| max. spare cable capacity ⌀10 mm [m] | 200 | 300 |
| max. spare cable capacity ⌀18 mm [m] | 50 | 100 |
| dimensions: diameter/depth [mm] | 800/400 | 800/560 |
| enclosure diameter max. [mm] | 180 | 220 |
| weight [kg] | 20 (lid: 8) | 23.5 (lid: 6,5) |

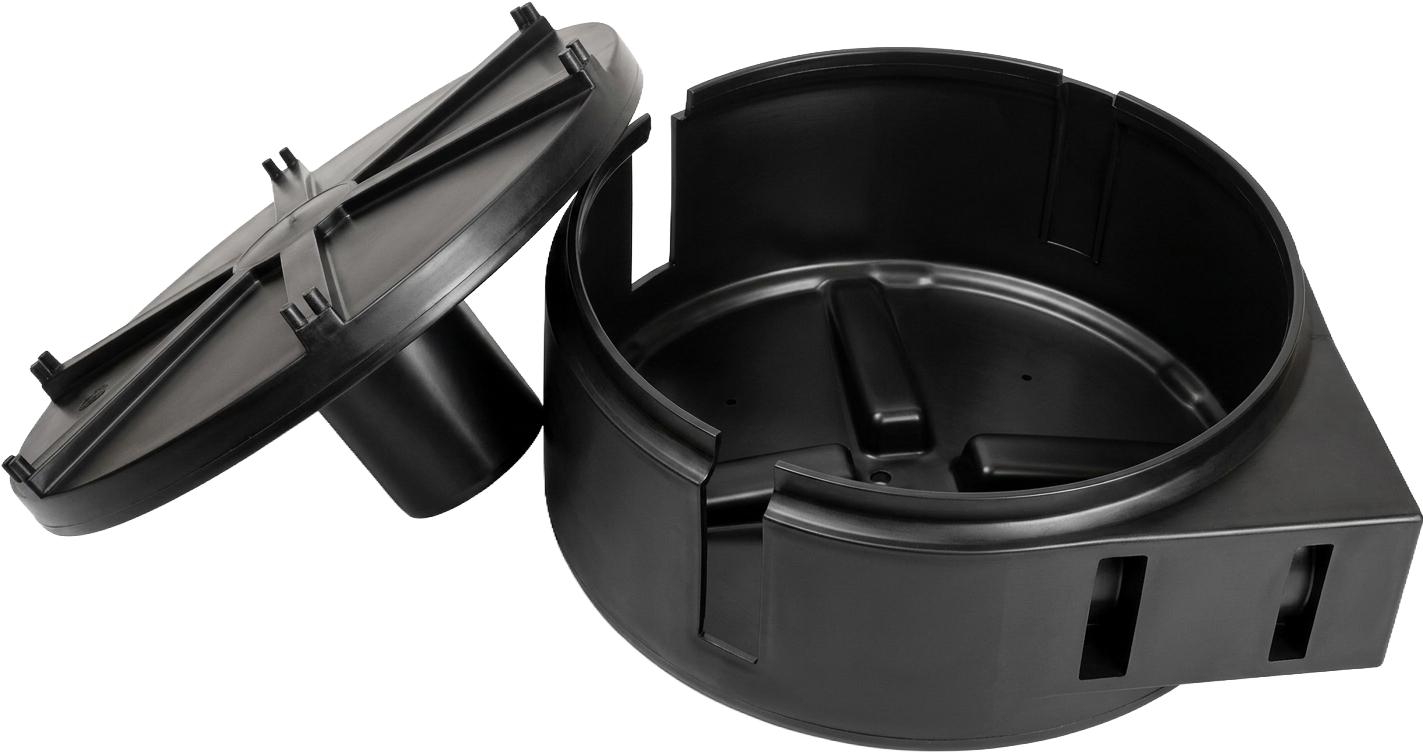

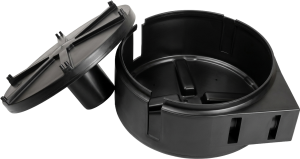

Underground plastic pit ZK-1
Product's code
G1160
DESCRIPTION
Enables storage of up to 200 m spare optical fibre cable. Used in places of cable incision/failure as a repair kit.
TECHNOLOGY
TELEKOM
ACCESS
FTTx
LAN
WAN
MAN
CATV
ZASTOSOWANIE WEWNĘTRZNE
