  • monoblock connector with zirconia ceramic ferrule
  • comply with the standards IEC-61754-4, PN-EN186260:2000, ZN-05/TP S.A.-044
  • available in MM, SM, PC and APC versions, and in duplex construction
connector type SC test conditions
MM PC 0° SM PC 0° SM APC 8°
insertion loss IL [dB] 0,2 0,15 IEC 61300-3-4; I=1300/1550 nm
return loss RL [dB] 40 55 65 IEC 61300-3-6; I=1300/1550 nm
repeatability of IL [dB] ±0,1 over service life
service life over 1000 mate/demate cycles
operating temperature [°C] -40 to +85 depending on cable specification
ferrule diameter [mm] 2,5
code SC SCP SCA





    BACK

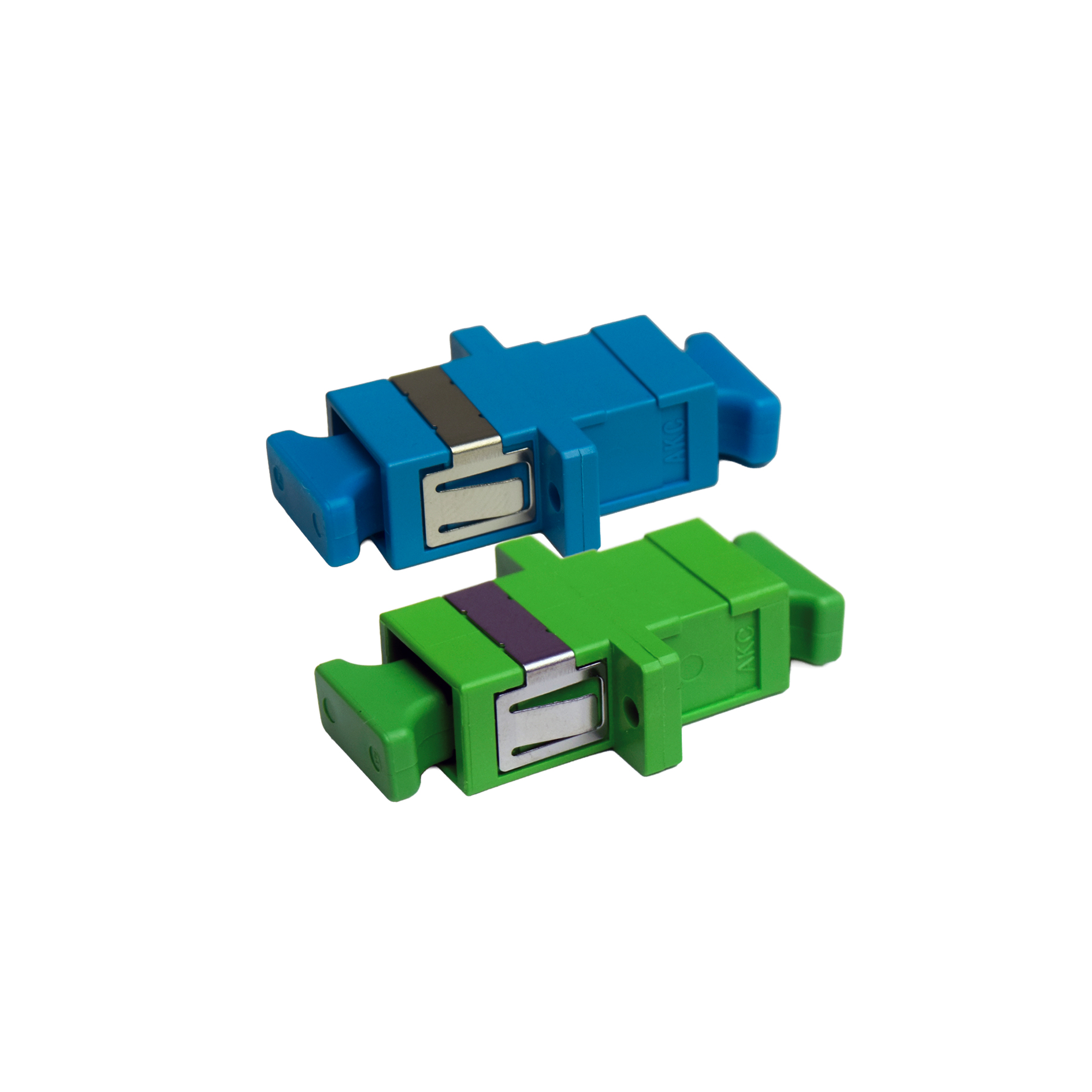

    SC MONOBLOK connectors and adapters

    Product's code
    A1080

    DESCRIPTION

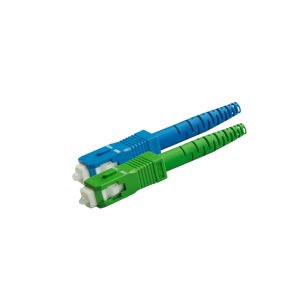

    Monoblock connector with zirconia ceramic ferrule. Available in MM, SM, PC and APC versions, and in duplex construction.
